Establishment of a patient-derived 3D in vitro meningioma model in xeno-free hydrogel for clinical applications

Acta Neuropathologica Communications volume 13, Article number: 81 (2025) Cite this article

Abstract

Background

Meningiomas exhibit a complex biology that, despite notable successes in preclinical studies, contributes to the failures of pharmaceutical clinical trials. Animal models using patient tumor cells closely mimic in vivo conditions but are labor-intensive, costly, and unsuitable for high-throughput pharmaceutical testing. In comparison, monolayer cell models (two-dimensional, 2D) are cost-efficient but lack primary tumor cell-cell interactions, potentially overestimating treatment effects. Three-dimensional (3D) models offer an alternative through more precise mimicking of tumor morphology and physiology than 2D models and are less costly than in vivo methods. Here, we aimed to establish a 3D cell model in a solid xeno-free medium using patient-derived tumors, thus creating a bench-to-clinic pathway for personalized pharmaceutical testing.

Methods

Four WHO grade 1 and one WHO grade 2 (third-passage, fresh) and 12 WHO grade 1 patient-derived meningioma cells (sixth-passage, frozen) and the malignant IOMM-Lee cell line were used to establish 2D and 3D models. The 3D model was developed using a solid xeno-free medium. After 3 months for the primary tumor and 13 days for the IOMM-Lee cell line, the 3D models were extracted and assessed using histology, immunohistochemistry, and epigenetic analyses (EPICv2 array) on five pairs to evaluate their structural fidelity, cellular composition, and epigenetic landscape compared to the original tumor.

Results

None of the frozen samples successfully generated 3D models. Models from fresh meningioma samples were more immunohistochemically similar to the primary tumors compared to 2D models, particularly regarding proliferation. 3D models displayed loss of fibrous tissue. All 3D models had similar copy number variation profiles, visually. Genome-wide DNA methylation level patterns were similar between pairs of 3D models and primary tumors. Correlation plots between CpG methylation levels showed high congruency between primary meningiomas and their corresponding 3D models for all samples (R > 0.95).

Conclusions

Our patient-derived 3D meningioma models closely mimicked primary tumors in terms of cell morphology, immunohistochemical markers and genome-wide DNA methylation patterns, providing a cost-effective and accessible alternative to in vivo models. This approach has the potential to facilitate personalized treatment strategies for patients requiring additional therapy beyond surgery.

Background

Personalized medicine is based on the need to abandon the “one size fits all” approach to diagnostics, drug therapy, and prevention and instead embrace the opportunity of an individualized strategy [1]. Personalized treatment involves identifying specific molecular targets and implementing pre-clinical models that use the patient’s own tumor sample. This approach is expected to significantly enhance the likelihood of therapeutic success. Consequently, there is a critical need for models that closely replicate the unique characteristics of an individual patient’s tumor.

Meningiomas originate from the leptomeninges, which have both mesodermal and neural crest origins [2], and are predominantly benign tumors [3]. They are the most common primary tumors of the central nervous system, accounting for approximately 40% of all primary central nervous system tumors [4]. The incidence is 1.9 per 100,000 for men and 4.5 per 100,000 for women [5, 6]. Meningioma diversity is reflected through the 15 identified histological subtypes [7, 8] that encompass a wide range of specific genetic and epigenetic profiles [9,10,11,12,13,14,15,16,17].

Surgical intervention remains the primary approach to meningioma treatment [18]. Due to their location, however, not all meningiomas (one-third of skull base tumors) can be fully removed without unacceptable risks [19] to the patient, emphasizing the need for non-surgical treatments. Despite significant efforts, no single pharmaceutical compound has proven universally effective for meningioma treatment [20], and it is more probable that specific subgroups require targeted treatments. Pre-treatment screening for potential effects in individual patients could be useful and relies on a variety of preclinical models, with animal models being the most effective at replicating natural tumor conditions [21]. However, pharmaceutical testing in animal models remains both costly and labor-intensive, making them impractical for large-scale, individualized screenings. This highlights the need to reassess and optimize models for evaluating drug effects in individual meningiomas.

Traditionally, in vitro pharmaceutical testing utilizes two-dimensional (2D) monolayer cell models that are simple and cost-effective but fail to sufficiently mimic in vivo conditions. These models lack the structural complexity of tumors and significantly underrepresent cell-cell and cell-extracellular matrix interactions. This limitation can influence key cellular processes such as differentiation, proliferation, viability, gene and protein expression, responsiveness to stimuli, and drug metabolism, among other essential functions [22].

Recent advancements in three-dimensional (3D) culture technologies, such as the development of organoids and spheroids, have addressed some of the limitations of traditional 2D monolayer models [22]. The 3D models more accurately replicate the dimensionality, structure, and function of tumors or organs and closely mimic primary patient-derived tumors in terms of morphology, immunohistochemistry, function, and epigenetics [23,24,25,26,27,28,29]. Various methods can be employed to establish these models [23]. Spheroids are typically formed through cell aggregation in low-adhesion flasks using simple cell types, whereas organoids derived from stem or tumor cells require more time (up to 2–3 months) to develop their complex structures [23]. Compared with in vivo animal models, 3D models are significantly more cost-effective and accessible, making them promising tools for large-scale identification of potential treatment options.

Through a systematic search of the current literature on 3D models in meningiomas, we identified two studies, which utilized similar methods to create 3D models embedded in a solid medium (Matrigel) using passage 0 cell culture [30, 31]. Despite their methodological similarity, the studies reported differing outcomes, including variations in 3D morphology and success rates of 62.5% [31] and 100% [30]. This indicates a need for further exploration and refinement of these techniques to develop reliable and reproducible 3D models of meningiomas.

The current study aimed to compare the morphological, immunohistochemical, and epigenetic profiles of primary patient-derived meningiomas and their corresponding 3D in vitro models, as well as the morphological and immunohistochemical characteristics across 2D, 3D in vitro, and in vivo models of a commercially available malignant meningioma cell line.

Materials and methods

Patient inclusion and meningioma tissue handling

The study was approved by the Regional Committees on Health Research Ethics for Southern Denmark (S-20190105) and was conducted in accordance with the latest version of the 1964 Declaration of Helsinki. Informed consent was obtained from all participants, and no identifiable personal details are included. Meningioma (MNG) tissue samples were collected during surgery from patients ≥ 18 years with primary MNG confirmed radiologically and histologically before final enrollment. Samples were transferred to Dulbecco’s Eagle Medium (DMEM AQ)(Sigma/D0819) supplemented with 10% fetal bovine serum (FBS) (ThermoFisher/10500064), 1% Penicillin/Streptomycin (ThermoFisher/15140122), 4 mM GlutaMax (ThermoFisher/35050038; stabile glutamine), 1 mM Sodium Pyruvate (ThermoFisher/11360039). The whole tumor pieces were washed twice in PBS (ThermoFisher/10140169). The tissue was then mechanically dissociated with scalpels to approximately 1 mm3. The dissociated pieces were resuspended in complete medium in T75 flasks and were incubated at 37CO/5% CO2 for three passages. Medium was changed every 2–3 days. After three passages and at a confluence of app. 70%, cells were trypsinized using TrypLExpress (ThermoFisher/12605028) and washed twice with PBS. A sample of the cells was embedded in a fibrin clot (mixture of equal part plasma and thrombin).

3D model establishment from fresh third-passage cells

Third-passage cells from primary samples were counted using Nucleocounter (Chemometec A/S, Alleroed, Denmark) after adding lysis buffer (buffer A100, 910-0003, Chemometec A/S, Alleroed, Denmark), stabilizing buffer (buffer B, 910-0002, Chemometec A/S, Alleroed, Denmark) and cells in equal volumes. Xeno-free biofunctional hydrogel (VitroGel ORGANOID-3, VHM04-3, TheWell Bioscience, North Brunswick, NJ, USA) was used to establish 3D models. Briefly, in accordance with the manufacturer’s instructions, cells were mixed with hydrogel in 1:2 ratio and were dispersed in 24-well plates with 300 µl per well in concentrations 5,000 cells/well and 10,000 cells/well. Prior experiments with cells between 1,000 and 60,000 cells/well had been performed to establish the concentrations.

3D model establishment from frozen cell samples

Third-passage cells, frozen in 90% FBS and 10% DMSO from benign primary patient-derived cells, were thawed by centrifuging at 180 g for 5 min, and then resuspended in complete medium in T75 flasks. Cells underwent similar treatment as described above, up to an additional three passages to the sixth passage, where 3D model establishment protocol as described above was performed.

Preparation for histological and immunohistochemical analyses and DNA methylation

3D primary MNG models were extracted after three months. According to the manufacturer’s instructions, 3D cell cultures were extracted from the xeno-free hydrogel using VitroGel Organoid Recovery Solution (TheWell Bioscience, North Brunswick, NJ, USA). In brief, hydrogels were extracted from the wells with a spatula and mixed with 37CO recovery solution in conical tubes. The hydrogel was dissolved with gentle rocking. Samples were then spun down at 180 g/5 min. A part of the samples was embedded in fibrin clots as described above for histology and immunohistochemistry, and a part of the 3D models were frozen in 10% DMSO/90% FBS and stored at -80 CO until DNA extraction. All fibrin clot samples were cut into 3 \(\:{\upmu\:}\)m sections on a microtome. Stainings for Hematoxylin & Eosin (H&E), epithelial membrane antigen (EMA), somatostatin receptor type 2 (SSTR2), progesterone receptor (PR), glialfibrillary acidic protein (GFAP), and proliferation marker Ki-67 were performed using the same methods and identical reagents as previousl [32]. Tumor pieces were taken directly from surgery and were immersion fixed in 4% neutral-buffered formaldehyde for 24 h prior to being paraffin-embedded and received the same staining as described above.

Histological and immunohistochemical scoring and assessment

The stained slides were digitalized using the NanoZoomer 2.0 digital image scanner (Hamamatsu photonics, Japan) and assessed by two trained neuropathologists (MW and JKP). Disagreements were discussed post priori to reach consensus. During the evaluation process, the neuropathologists were unaware of each other’s classifications regarding the MNG subtype and the immunohistochemical staining scores (0, + 1, +2, + 3), where 0 represented no staining, + 1 indicated weak staining, + 2 denoted moderate staining, and + 3 indicated strong staining. If the assessors' evaluations differed by no more than a single grade (e.g., a score of +2 versus +3 or +1 versus +1), their ratings were considered to be in agreement. In cases of such minor variation, the scores were reported as a range (see Results). All disagreements—defined as differences greater than one grade (e.g., a score of +1 versus +3)—were resolved through a consensus meeting between the neuropathologists. Ki-67 findings from primary tumors, brain sections, and implanted cells were displayed as a range from min to max of both assessors. Ki-67 highest score was also noted representing areas of so-called “hot spots”. Any other differences in grading were resolved through a consensus meeting between the neuropathologists. Both individual and consensus scores can be found in Supplemental Material 1. Sizes were estimated based on brightfield images as 3D models based on fresh patient-derived tumors fragmented upon retrieval from the culture.

3D modelling with a malignant cell line

The malignant cell line was purchased from American Type Culture Collection (ATCC) (CRL-3370) and was acquired in September 2022 (IOMM-Lee Meningioma Human, LOT: 70027737, authenticated by ATCC). IOMM-Lee originates from a frontal tumor in a 61-year-old male [33] and is the most commonly used commercially available cell type in MNGs preclinical research. The original stock (which was mycoplasm-free) was incubated for three passages and refrozen in multiple vials. Adherent/monolayer 2D cells were incubated as described above. The 3D model was established with the same stock of third-passage cells used for in vivo. Various concentrations from 1,000 to 10,000 were tested prior, and 1,000 cells/well were chosen based on growth potential assessed through brightfield microscopy and basic histology with H&E sections. 3D model experiments incubated for a couple of weeks to match in vivo incubation period and received similar stainings as described above.

In vivo modelling with a malignant cell line

To assess in vitro and in vivo differences in morphology and immunohistochemistry, we established an orthotopic model in two Crl: NIH-Fox1rnu athymic, female nude rats homozygous, 5–7 weeks old at implantation (Charles River Laboratories, Germany) after one week of acclimatation, using 100,000 and 250,000 cells harvested from the 2D adherent monolayer culture using an identical method as published before by our group through superficial injection via a burr hole in front of bregma to the right [32]. Animal experiments were approved by the Danish Animal Experiments Inspectorate (2019-15-0201-00195), and all experiments were conducted in accordance with local guidelines, national regulations, the Danish 3R-Center and to the Principles of Laboratory Animal Care (NIH publication No. 86 − 23, revised 1985). For detailed description of the experimental setup, which followed the ARRIVE 2.0 the recommended set [34] for animal experiments, see Supplemental Material 5. Animals were terminated after a couple of weeks (13 days) based on the findings from a systematic review from our group [21] and received similar stainings as described above.

Assessment of 3D models with similar methods in a systematic literature search

The systematic literature search for a scoping review on 3D models in MNGs (in preparation) included the databases Embase, Medline, and Web of Science. The scoping review protocol was published on the first author’s personal page on ResearchGate.net. In compliance with PRISMA Extension for Scoping Reviews (PRISMA-ScR Check) [35], the protocol, is also available as Supplemental Material 6. The literature search strings from two rounds are available in Supplemental Material 7 and 8. All records extracted were screened by two of the authors (MSA + AYN). All records deemed eligible by either of the authors in the first round of screening were included in the second round. Inter-rater agreement using Cohen’s Kappa statistics [36] was 0.85 after initial screening.

DNA methylation Preparation

Formalin-fixed, paraffin-embedded (FFPE) sections from primary tumors were cut into 10 μm slices (two or three per sample) and underwent DNA extraction following the QIAamp DNA FFPE Tissue Kit protocol (QIAGEN, Germany), as described in Supplemental Material 4. DNA from frozen trypsinized 3D models was extracted using the MagNA Pure 96 System (Roche Diagnostics, Germany) with 200 µL of sample (cells in lysis buffer) and 300 µL of PBS buffer, totaling 500 µL per well. The MagNA Pure 96 DNA and Viral NA Large Volume Kit reagents were used following the manufacturer’s protocol. The final elution volume was 100 µL, and DNA concentration was measured using a Qubit fluorometer. To ensure consistency, DNA was extracted from both the primary tumors and their corresponding 3D models at the same time point, followed by DNA methylation profiling using the same EPICv2 935 K chip for each of the pairs. Manufacturers’ protocols were followed. DNA quality was verified with the Infinium HD FFPE Methylation Assay 2.0 (Illumina Inc., CA, USA). Bisulfite conversion was performed using the EZ DNA Methylation Kit (Zymo Research Corp., CA, USA), and DNA was restored with the Infinium HD Assay Kit FFPE – Restore Kit (Illumina Inc., CA, USA) and the ZR-96 DNA Clean and Concentrator kit (Zymo Research Corp., CA, USA). DNA amplification followed the Infinium HD FFPE Methylation Assay protocol (Illumina Inc., CA, USA). DNA methylation data were obtained via the iScan System (Illumina Inc., CA, USA).

Unsupervised and supervised analysis of DNA methylation levels

Raw IDAT files were processed through the DNA methylation-based CNS classifier [37] to evaluate copy number variation and classifications using the Brain Tumor Classifier (v12.8).

Genomic methylation analyses were performed in R (v 4.4.1) with Bioconductor (v 3.20) using Minfi (v 1.52.1) for analyzing and visualizing DNA methylation data. Minfi’s ‘preprocessingIllumina’ was utilized for initial processing of the probes. Probes with a detection of P > 1.0 × 10− 16 in any sample were filtered out, and quality control of the probe set was run with the ‘getQC´ function (cutoff set to 11). Duplicate/replicate probes were averaged across the beta matrix to generate a single beta value per probe. Probes that contained SNPs either at the CpG interrogation or at the single nucleotide as well as all masked probes and probes that were located on the X chromosome or Y chromosome were filtered out (n = 39811 removed probes for 10-sample set, and n = 39797 probes for 8-sample set) (a complete list of masked probes is provided by Zhou et al. [38]). The 8-sample set included MO-38 to MO-41 both tumors and 3D models, and the 10-sample set al.so included MO-42. The final unmasked beta matrix probe count after preprocessing and filtering was 867101 probes for the 10-sample set and 867115 probes for the 8-sample set. The top 1,000 most variant CpG sites were selected across all samples, and heatmaps were generated using the ComplexHeatmap package [39]. We performed 3D principal component analysis (PCA) for dimensionality reduction and visualization. Correlation plots were generated for each of the primary tumors and their corresponding 3D model, focusing on CpGs from the whole genome of the 10-sample set. Pearson’s correlation statistic was used to determine statistical significance for the correlation plots. Comparison of probes between primary patient-derived tumors and 3D models was completed through pairwise comparisons (Wilcoxon rank-sum test). Differentially methylated probes (DMPs) were defined using p-values adjusted for false discovery rate (FDR) and the mean methylation difference (diff.mean) between groups. Throughout the analyses we found no significant adjusted p-values, hence all DMP analyses was performed on raw p-values. Additionally, traditional significance levels for unadjusted p-values (praw≤0.05) and cutoffs of diff.mean > 0.2 and > 0.4 were used as baselines to define significant DMPs.

Functional gene enrichment analysis

Gene set enrichment analysis (GSEA) was performed to evaluate the top 20 pathways associated with genes linked to the most significant differentially hypomethylated and hypermethylated DMPs between the tumor/3D MNG pairs (pFDR≤ 0.05; abs(diff.mean) ≥ 0.4) using the Molecular Signatures Database (MsigDB) via Gene Set Enrichment Analysis (GSEA) from the Broad Institute [40]. The analysis was conducted using canonical pathway sets (BioCarta, KEGG, PID, Reactome, WikiPathway) and ontological gene sets (GO: BP, GO: MF, GO: CC) for comprehensive insights.

Genes were annotated via an in-house script that reads in both the Infinium MethylationEPIC GenomeStudio V2.0 manifest file [41] (v2.0 A2) and the Gencode Release 47 (GRCh38.p14) comprehensive gene annotation file. The EPIC V2.0 manifest file was subsetted to include only ‘cg’ probe type and to remove any probes that were labeled as located on chromosome ‘0’. These probes either lack a reliable mapping or have multiple mappings that are statistically the same. Duplicate probes were collapsed into a single probe name while keeping each of the unique Illumina names. The Gencode file was subsetted to genes only, and gene ranges were generated via the ‘Granges’ package. When mapping the EPIC V2.0 manifest with the Gencode file, strand was accounted for (ignore.strand = F).

Results

Clinicopathological characteristics of included samples

We included MNG tissue sample from 18 patients in this study. The fresh sample group consisted of five primary patient-derived samples, while 12 samples were obtained from frozen third-passage cells derived from 12 patients. Additionally, one malignant sample was included from the commercially available malignant MNG cell line, IOMM-Lee [33]. Of the five fresh primary patient-derived tumors, four were classified as WHO grade 1 MNGs and one as WHO grade 2 according to the 2021 WHO guidelines [7]. All frozen primary tumors were benign WHO grade 1.

All five fresh samples, as well as the malignant IOMM-Lee cell line, developed into 3D cell cultures within the hydrogel. In contrast, none of the 12 third-passage frozen MNG samples formed 3D cultures and instead exhibited signs of cell death under brightfield microscopy. Table 1 provides an overview of the sample characteristics.

3D model cell morphology resembles primary meningioma cells

Three primary samples were WHO-grade 1, meningothelial subtype with lobulated architecture and focally whorled growth pattern (MO-38, MO-39, and MO-42). The tumor cells were epithelioid cells with round to oval nuclei without mitotic activity. MO-39 primary tumor displayed some pseudoinclusions, and MO-42 only displayed a discrete whorled growth pattern. However, the tumor cells showed an abundant syncytia-like cytoplasm with small oval nuclei and indistinct nucleoli. The remaining two primary samples (MO-41, grade 1 and MO-40, grade 2) had fascicular growth pattern and tumor cells in a fibrous collagen matrix consistent with fibrous MNGs. MO-40 tumor cells were blunt to spindle-shaped with oval to irregular nuclei, and some showed pseudoinclusions and invasive brain growth. For all 2D meningeal tumor cells from monolayer culture coalesced in fibrin clots, single tumor cells varied in shape, size, and nuclear morphology, and some nuclei had quite prominent nucleoli. 3D models fragmented upon retrieval from the culture, but all had clear MNG cell morphology. Cells were coalesced in fibrin clots, and individual tumor cells were rounded to slightly elongated. The growth pattern of MO-39 resembled the primary tumor, but there were no nuclear holes or pseudoinclusions. Cells from MO-40 were similar to the primary tumor with an irregular morphology. Collagen or fibrous tissue did not translate to in vitro conditions. MO-42 nuclei were oval and quite uniform in shape and size like the corresponding primary tumor (Fig. 1). For closer evaluation of morphological descriptions, see Supplemental Material 3.

Table 1 Clinicopathological characteristics of primary meningioma samples that underwent cell culture
Full size table

The IOMM-Lee malignant 3D cell model did not fragment as the benign and atypical primary patient-derived models did upon extraction from the hydrogel. In monolayer culture, these tumor cells exhibited some variation in shape (irregular), size, and nuclear morphology, with some nuclei having nucleoli. Cell morphology was also preserved in the 3D and in vivo samples, which showed no specific growth patterns. The 3D model overall histological morphology somewhat resembled the in vivo xenografts. The nuclei varied in both shape and size with less prominent nucleoli compared to the in vivo xenograft (Fig. 2).

Sizes (diameter) for all 3D model primary patient-derived samples ranged from 50 to 200 μm (MO-38: approx. 50–100 μm, MO39: approx. 200 μm, MO-40: 80–150 μm, MO-41: 50–100 μm, MO-42: 150 μm) (Fig. 1). The diameters of the malignant IOMM-Lee 3D models were estimated to 100–300 μm (Fig. 2).

Immunohistochemical congruency with minor differences between primary tumor and 3D models

Overall, primary tumors and IOMM-Lee samples displayed similar immunohistochemical profiles to their corresponding 3D models with slight differences (Figs. 1 and 2, and Table 2).

The cytoplasmatic stainings of EMA, SSTR2, and GFAP showed congruency between primary tumors and 3D models to some degree. EMA expression was regained in 3D for two samples (MO-38 and MO-42) (primary patient-derived tumor (PPDT) > 2D and PPDT = 3D staining intensity) and showed similar staining in three samples (MO-39, MO-40, and MO-41) (PPDT > 2D and 2D = 3D staining intensity). 2D models displaying lower staining intensity for all. SSTR2 expression was more heterogenous from primary tumors to 3D models but showed similar expression from 2D to 3D in most of the samples (MO-38, MO-40, MO-41) (PPDT(>)2D + 3D, 2D = 3D staining intensity); the corresponding primary tumors stained more strongly overall. Lastly, the cytoplasmatic staining of GFAP showed consistent non-specific staining from primary tumor to 2D to 3D. PR expression was either nearly lost or lost already in the third-passage 2D cells (MO-38 and MO-40). Here the primary tumors showed poor expression (+ 1/+2). Two samples showed retained PR expression throughout primary tumor to 2D to 3D (MO-39 and MO-42). Proliferation marker Ki-67 displayed comparable values for primary tumors and 3D models (1–20%). In general, Ki-67 was much higher in the third-passage 2D cells in all samples except MO-40 primary tumor, 2D and 3D that had comparable Ki-67 levels (Fig. 1).

Ki-67 proliferation marker in the malignant cell line IOMM-Lee showed a higher percentage for 2D grown cells (95–100%) compared to in vivo (75–90%) and 3D (50–90%). Remaining immunohistochemistry staining scores were either 0 (EMA, SSTR2, and PR) or stained non-specifically (GFAP) (Fig. 2).

Further evaluations of the immunohistochemistry of individual 3D models are available in Supplemental Material 1, and examples of scoring are available in Supplemental Material 2 (primary tumors, 2D and 3D models).

Brain Classifier v12.8 results

All samples matched with "meningiomas". MO-38, MO-41, and MO-42 (all WHO grade 1) matched best with the benign category, showing similar subclasses between the primary tumors and their corresponding 3D models. MO-40 (WHO grade 2) also matched best with the benign category for both the primary tumor and 3D model, although the subclasses differed. Finally, MO-39 (WHO grade 1) matched best with the intermediate A category in the primary tumor, although the result was not significant (0.76). In contrast, the corresponding 3D model matched best with the benign category (0.91), with subclass 1 being insignificant (0.46) (Table 2).

Epigenetic analyses revealed high congruency between sample pairs

The bisulfite conversion was efficient for all samples. All samples exhibited acceptable DNA quality with a CpG detection p-value ≥ 99%. Preprocessing also revealed high quality DNA (see Supplemental Material 9).

We identified five optimal methylation-based clusters through k-means unsupervised hierarchical clustering and analysis of appropriate consensus measures across the 1000 most variant CpGs, visualizing them through methylation-based heatmaps (beta value). The models and tumors were paired for MO-38 to MO-41, while the 3D model for MO-42 had more in common with the 3D model and primary tumor of MO-40 (see Supplemental Material 10). Heatmap excluding the MO-42 sample showed clusters in pairs despite assessing the top 1000 most variant CpG probes. The heatmap showed some methylation level differences, especially in enhancers in the gene body location—where 3D models were predominantly hypomethylated compared to their corresponding tumors (Fig. 3).

Fig. 1
figure 1

Histology and immunohistochemistry of primary patient-derived meningiomas(tumors) (PPDT)/primary tumors and corresponding 2D and 3D models – Representative images. 3D models were incubated for 3 months. Representative images of magnetic resonance images (T1-weighted) of the primary tumors can be seen to the left (See Table 1 for clinicopathological characteristics). 3D BF: 3D brightfield, the field of view (circle) is 1 mm/1000 µm in diameter – used to estimate 3D model diameters. PPDT: primary patient-derived tumor, 2D: monolayer cell model embedded in fibrin clots, 3D: 3D models embedded in fibrin clots H&E: Hematoxylin and Eosin, EMA: Epithelial membrane antigen, PR: Progesterone receptor, Ki-67: Proliferation, SSTR2: Somatostatin receptor 2, GFAP: Glial fibrillary acidic protein. Black scale bars: All histology slides: 100 \(\:{\upmu\:}\)m

Full size image
Fig. 2
figure 2

Histology and immunohistochemistry of IOMM-Lee monolayer third-passage 2D model, xenograft (in vivo), and 3D model – Representative images. Both the in vivo and the 3D models were incubated for 13 days. H&E: Hematoxylin and Eosin, EMA: Epithelial membrane antigen, PR: Progesterone receptor, Ki-67: Proliferation, SSTR2: Somatostatin receptor 2, GFAP: Glial fibrillary acidic protein. Black scale bars: All histology slides: 100 \(\:{\upmu\:}\)m. The overview (OV) images represent 2D: overview of fibrin clots black bar: 2,5 mm. in vivo: Coronal slice of rat brain with white arrows pointing towards tumor, black scale bar: 2,5 mm. 3D: 3D brightfield, the circle is 1 mm in diameter – black scale bar represent 200 \(\:{\upmu\:}\text{m}\)

Full size image
Table 2 Immunohistochemical staining showing semiquantitative scores across primary tumors and corresponding 2D and 3D models
Full size table

Correlation plots across a subset of the whole genome revealed correlations between R = 0.96–0.99 (MO-38: R = 0.97, p < 2.22 × 10− 16; MO-39: R = 0.98, p < 2.22 × 10− 16; MO-40: R = 0.97, p < 2.22 × 10− 16; MO-41: R = 0.99, p < 2.22 × 10− 16; MO-42: R = 0.96, p < 2.22 × 10− 16) (Fig. 4A). Analysis also revealed the samples were in proximity in the 3D PCA plot (Fig. 4B).

Supervised DNA methylation analysis comparing primary tumors and corresponding 3D models revealed only a small number of DMPs at an unadjusted p-value significance level of p ≤ 0.05. Overall, the 3D models exhibited predominant hypomethylation compared to primary patient-derived tumors. At a diff.mean cut-off of (0.2) 20%, most CpGs displayed insignificant differences, with 3,900 hypomethylated and 686 hypermethylated probes identified. Application of a stricter diff.mean cut-off at (0.4) 40% to highlight the most significant changes narrowed the findings to 486 hypomethylated and 13 hypermethylated probes (Supplemental Material 11).

Fig. 3
figure 3

Heatmap displaying the unsupervised clustering of the top 1000 most variable CpG probes. Methylation heatmap displaying the 1000 most variable methylated probes (beta values) across unsupervised k-clusters (n = 8 samples). Samples are sorted into methylation-based clusters and annotated by sample type (Tumor, 3D model)

Full size image
Fig. 4
figure 4

Correlation plots across 10k probes between tumor and 3D samples from five patients. (A) Depicts correlation plots of whole genome hypo- and hypermethylated probes for all five sample pairs. (B) Whole genome 3D PCA plot showing how pairs align in a 3D vector environment. Circles depict 3D models, and crosses depict primary patient-derived tumors. Different colors represent different patients

Full size image

3D models recapitulate copy number variation from the primary tumors

Copy number variation profiles showed strong visual similarities between the primary patient-derived tumors and their corresponding 3D in vitro model for all five samples. In general, we detected no chromosomal number alterations from primary tumors to 3D models. MO-38 showed no cytogenetic changes in either the primary tumor or the 3D model. MO-39 displayed loss of chromosomes 14 and 22, both common in MNGs. Loss of 22q (which harbors NF2) was also observed in MO-40 and MO-41 without any other cytogenetic changes. The MO-42 primary tumor showed a more complex profile, with certain gains in chromosomes 3, 5, 8, 9, 10, 12, 13q, 14q, 15q, 17, 20, and 21, which were also observed in the 3D model although at a lower signal intensity. A lower intensity was similarly noted - to a lesser degree - in MO-39 (Fig. 5).

Fig. 5
figure 5

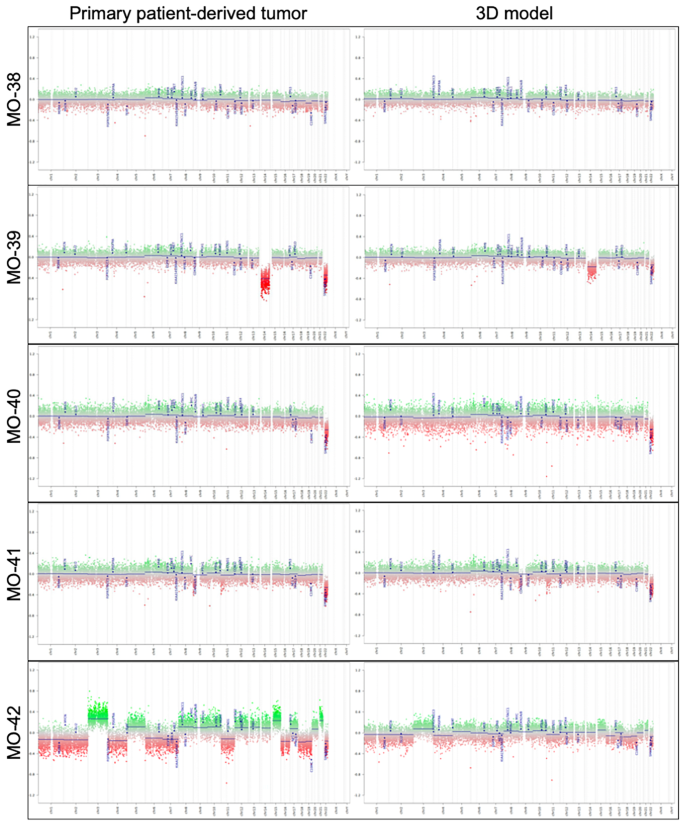

Cytogenetic analysis of primary tumors and corresponding 3D models - copy number variation (CNV) profiles. No significant changes were observed from the primary patient-derived meningiomas to their corresponding 3D model. However, variations in signal intensity (particularly in complex karyotypes like MO-42) highlight the potential influence of 3D culture conditions on chromosomal patterns

Full size image

Gene set enrichment analysis

A total of 486 hypomethylated CpG sites (significant DMPs using raw p-values) were identified, of which 249 were associated with genes, and 13 hypermethylated CpG sites were found, of which 10 were linked to genes. The genes were associated with the following areas: (1) cytoskeletal dynamics and cell motility, (2) tissue repair and extracellular matrix remodeling, (3) cell-cell and cell-matrix interactions, (4) developmental processes and plasticity, (5) transcriptional and RNA regulation, and (6) Rho GTPase signaling and projections. No overlaps were identified for hypermethylated probes at this cut-off. For a detailed overview of the pathways, see Table 3, numbers in the text correspond with the numbers in the table. The complete GSEA analysis is available in the Supplemental Material 12.

Table 3 Gene set enrichment analysis table for the 20 most significant gene sets based on the 0.4 cut-off analysis
Full size table

Discussion

In this study, we successfully developed and established an in vitro 3D model using a solid, xeno-free hydrogel. Single-cell suspensions from four WHO-grade 1 and one WHO-grade 2 fresh patient-derived tumors were cultured for three months, while a commercially available WHO-grade 3 cell line (IOMM-Lee) [33] was cultured for two weeks. Notably, the patient-derived 3D models retained highly conserved characteristics, including histological features, surface marker expression, and epigenetic profiles.

Morphologically, we observed comparable cell types where the 3D models more accurately represented the primary patient-derived cell morphology compared to the corresponding 2D models. However, the overall cytoarchitecture of meningioma subtypes, particularly the fibrous tissue and collagen components, was not retained in the 3D models. Previous literature using a similar method to ours (growth in a solid medium) have reported morphological congruency between primary tumor and 3D model without being described further to allow comparisons between our approaches [30]. Similarly, Chan et al. [31] described the successful development of 3D architectures but did not compare them to the corresponding primary tumors. Their 3D models exhibited extensive areas of sparse cellularity interspersed with clusters of densely packed cells. The malignant cell line exhibited similar cell morphology across 2D, in vivo, and 3D models, with a notable resemblance between the 3D and in vivo models. This congruency may result from a highly homogeneous cell population maintained over many passages [42], which limits its ability to accurately replicate the complex pathophysiology of meningiomas [21]. However, it underscores the model’s capacity to mimic primary samples, as exemplified by the in vivo model. Our 3D models show spherical cell models with similar sizes (ranging from 50 to 200 μm) comparable to those of Yamazaki et al. [30]. Immunohistochemically, we found a closer representation of cytoplasmatic staining for EMA and SSTR2 between primary tumor and 3D models compared to the 2D models as shown in Fig. 1. In our 3D model, EMA and SSTR2 were either largely regained or comparable to those observed in 2D models. This aligns with findings from other studies on 3D models, where SSTR2 was reported to be highly retained in some cases [30] and less retained in others [43].

Fast-dividing tumor cells have less time for DNA repair, which increases their susceptibility to accumulating damage and triggering apoptosis [44]. Furthermore, anti-cancer drugs tend to be more toxic to proliferative tumor cells than to non-dividing cells [45]. Consequently, an evaluation of how well a pre-clinical model replicates the proliferative characteristics of the tumor is crucial for effective drug screening and therapy development. Here we showed that monolayer (2D) cultures of meningiomas exhibit a higher Ki-67 index, likely due to the favorable in vitro environment compared to primary tumors [46]. In contrast, our 3D model showed a similar Ki-67 index (with proliferating cells evenly distributed throughout the samples) that more closely mimicked the corresponding primary tumors, corroborating the results described by Yamazaki et al. [30], who utilized similar culture conditions to ours. We have previously experienced this elevation of 2D proliferation in an in vivo model, where the animal tumors resembled their corresponding primary patient-derived tumor [32]. This also suggests our 3D cell model has a greater likeness to in vivo than to 2D and could function as a bridge between 2D and in vivo [47]. To maintain intra-patient 3D model consistency and cellular heterogeneity, we used third-passage cells, which in our previous study retained stem cell-related biomarker-positive cells, thus preserving stem cell-like features from benign meningiomas [32]. Passaging cells sacrifices some morphological consistency, however, such as the absence of fibrous tissue observed in the primary tumors, in exchange for improved uniformity across the 3D models. Prospectively, we will explore different cell passage stages (passage 0, 1, and 3) to optimize the balance between consistency and cellular diversity.

Copy number variations were similar for all samples but tended towards a lower signal intensity, especially for the MO-42 sample. We hypothesize the meddling of a competing cell type such as the fibroblast, which is common in meningiomas [7] and meninges [48] may be influencing results. Similar findings have been reported in pancreatic organoid cultures using a similar method with Matrigel, where fibroblast growth could be visualized [49]. Yamazaki et al. [30] found comparable copy number variations between primary and organoid culture at low passages but found few chromosomal changes when performing long-term cultures. These findings highlight the importance of validating patient-derived models’ likeness to corresponding primary tumors before using them as pre-clinical models.

Using BrainClassifier v12.8, all samples were classified within the meningioma methylation class, with a tendency toward similar subclasses in most cases. One sample (MO-39 – WHO grade 2) showed an insignificant match with the Intermediate A subclass for the primary tumor and a benign subclass for the corresponding 3D model. Sahm et al. (2017) [12] reported discrepancies between the then used WHO classification and DNA methylation-based classification. Furthermore, BrainClassifier does not provide information on which specific CpG sites the classifier emphasizes within each class.

Epigenetically, we observed a high degree of congruency in DNA methylation patterns across all five tumor/3D model pairs. When assessing hypo- and hypermethylated CpG sites, we found a strong correlation between the CpG methylation levels in primary tumors and their corresponding 3D models (R > 0.95, p ≤ 2.22 × 10− 16). This was even higher than that reported for our in vivo models (R = 0.82–0.93) [32], likely influenced by the mixture of rodent DNA in the stroma [50]. The findings in the 3D models align with those of Yamazaki et al. [30], who reported high epigenetic congruency in low-passage organoids. Additionally, when examining the top 1000 most variant CpG sites, four of the pairs still clustered with their corresponding samples, further emphasizing their similarity.

We identified DMPs that were hypomethylated in the 3D models compared to the primary patient-derived tumors, indicating a possible loss of tumor-specific methylation patterns in a few genomic locations. After statistical adjustments, no significantly differentially methylated probes were found between the 3D models and their corresponding primary tumors, supporting their similarity. The lack of statistical significance does not rule out the possibility of real biological differences, however, warranting caution in the interpretation of these results. While there was a high correlation of the methylation levels between 3D models and the primary tumors, which increases the model’s relevance for studying tumor biology, the methylation changes could indicate potential deviations from the behavior of the primary tumor due to the lack of microenvironment influences. The hypomethylated pathways, including those related to cytoskeletal dynamics and cell motility, extracellular matrix (ECM) remodeling, and particularly cell-cell and cell-matrix interactions, may reflect cellular adaptation to the simplified artificial culture environment, which lacks the complex signaling of the in vivo tumor microenvironment [51]. Moreover, the hypomethylation of developmental pathways also suggests that cells in the 3D model regain plasticity, indicative of adaptation to in vitro conditions. This plasticity enables cells to adjust their phenotype and behaviors to meet the environmental challenges posed by 3D culture. As is common with in vitro cultures, these conditions often mimic stress or wound-like environments, which facilitates an increased “healing” response due to mechanical disruption or the absence of a supportive microenvironment.

Although 3D models represent a significant advancement over traditional 2D models, they still highlight some well-known limitations of in vitro modeling [52] such as the interaction with the tumor microenvironment, which could potentially be addressed by co-culturing the 3D models with components of the in-situ tumor microenvironment [53]. This approach requires further investigation in future studies.

Methodological limitations

In addition to the limited number of samples, this study has several limitations. First, establishing in vitro models is challenging due to cellular senescence, particularly in primary cells with limited division potential that enter replicative senescence rapidly after few passages. This is evident in benign meningiomas [54], where low proliferation and reduced telomerase activity cause rapid senescence, limiting cell expansion and long-term culture [55,56,57]. We observed that fresh third-passage cells had a 100% success rate in forming 3D models in hydrogel, while cryopreserved third-passage cells used at the sixth passage had a 0% success rate. The three-month incubation period required to develop 3D models could potentially delay drug testing assignments for meningiomas. However, the growth of these tumors is generally not as time-sensitive for treatment decisions. For the more time-sensitive malignant subtype, we demonstrate that 3D model development can be achieved in just a few weeks. Prospectively, it will be important to assess various incubation periods, such as one and two months, for benign tumors.

Furthermore, extraction from VitroGel was difficult with the benign and atypical cells and resulted in fragmented samples, an issue we did not observe with the malignant cells (IOMM-Lee). Matrigel allows easier extraction for benign samples [30, 31] but has batch variability and undefined composition, which can skew results [58]. In contrast, xeno-free VitroGel provides batch consistency for more homogenous experiments.

Moreover, DNA methylation analysis of FFPE tissue can be affected by DNA damage from the fixation process, potentially leading to inaccurate bisulfite conversion and overestimation of methylation [59]. This may contribute to discrepancies between FFPE (primary tumors) and fresh frozen samples (3D models) in our study. However, we applied a heating step (90Co for 60 min) during DNA extraction to reduce this bias (see Supplemental Material 2). Previously applying this step has shown to minimize differences between FFPE and frozen samples [59].

Conclusions

Despite a few pattern deviations, our patient-derived 3D models replicated the primary meningiomas in terms of cell morphology, immunohistochemistry, and epigenetic features. The overall cytoarchitecture of meningioma subtypes, particularly the fibrous tissue and collagen components, was not retained in the 3D models. 3D models provide a cost-effective and accessible alternative to in vivo models that is more accurate than monolayer 2D models in mimicking primary tumors, particularly in terms of proliferation indices. These results suggest that our 3D model shows promise for large-scale screening of potential treatments, both novel and approved, that are tailored to individual patient characteristics. This approach could benefit meningioma patients who require additional treatment beyond surgery, including those with subtotal resections, atypical or malignant tumors, or where surgery is not advisable and only biopsy is available. Further studies are necessary to identify and match effective drugs on a personalized, tumor-specific basis and to determine their suitability for specific meningioma subgroups in clinical applications.

Data availability

Most data generated or analyzed during this study are included in this published article (and its Supplemental Material files). The remaining datasets generated during and/or analyzed during the current study are available from the corresponding author on reasonable request. The digital histology and immunohistochemistry files and the IDAT files generated and analyzed are not publicly available due to large file sizes, but they are available from the corresponding author on reasonable request.

Abbreviations

2D:

Two–Dimensional

3D:

Three–Dimensional

ARRIVE:

Animal Research: Reporting of In Vivo Experiments

ATCC:

American Type Culture Collection

BP:

Biological Process (from Gene Ontology)

BRIDGE:

Brain Research–Inter Disciplinary Guided Excellence

CBTRUS:

Central Brain Tumor Registry of the United States

CNS:

Central Nervous System

CNV:

Copy Number Variation

CP:

Cerebellopontine

CRL:

Charles River Laboratories

DMSO:

Dimethyl Sulfoxide

DMEM:

Dulbecco’s Modified Eagle Medium

DNA:

Deoxyribonucleic Acid

DMP:

Differentially Methylated Probe

ECM:

Extracellular Matrix

EMA:

Epithelial Membrane Antigen

EPIC:

Infinium MethylationEPIC BeadChip

FBS:

Fetal Bovine Serum

FFPE:

Formalin–Fixed Paraffin–Embedded

FDR:

False Discovery Rate

GOBP:

Gene Ontology Biological Process

GOCC:

Gene Ontology Cellular Component

GOMF:

Gene Ontology Molecular Function

GSEA:

Gene Set Enrichment Analysis

H&E:

Hematoxylin & Eosin

IDAT:

Illumina DNA Array Technology File Format

IOMM:

Lee–A specific malignant meningioma cell line

KEGG:

Kyoto Encyclopedia of Genes and Genomes

MNG:

Meningioma

MO:

Meningioma Odense (Sample Identifier)

MsigDB:

Molecular Signatures Database

NF2:

Neurofibromatosis Type 2

NGS:

Next–Generation Sequencing

PBS:

Phosphate–Buffered Saline

PCR:

Polymerase Chain Reaction

PCA:

Principal Component Analysis

PID:

Pathway Interaction Database

PR:

Progesterone Receptor

PRISMA:

Preferred Reporting Items for Systematic Reviews and Meta–Analyses

RNA:

Ribonucleic Acid

SNP:

Single Nucleotide Polymorphism

SSTR2:

Somatostatin Receptor Type 2

T1:

weighted–A type of MRI sequence

TME:

Tumor Microenvironment

WHO:

World Health Organization
